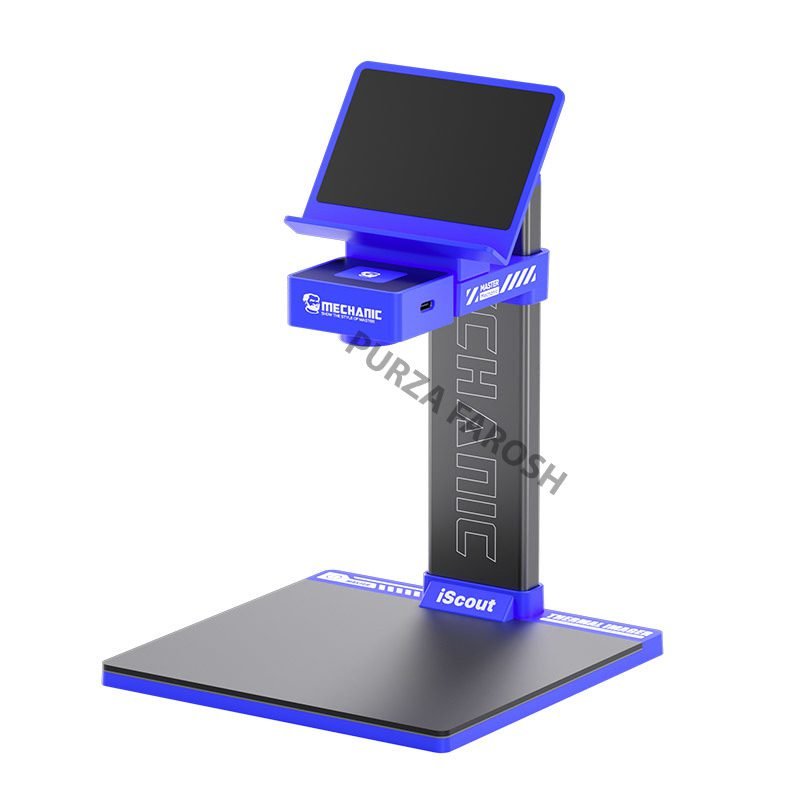

Mechanic iScout Infrared Thermal Imaging Camera for PCB Motherboard Locate Faulty Detection

Product details
Description
Mechanic iScout Infrared Thermal Imaging Camera for PCB Motherboard Locate Faulty Detection

Features:
Mechanic iScout cellphone version thermal imaging analyzer, professional motherboard testing instruments make your maintenance faster and more accurate
Support one-key leakage detection, the minimum can detect 6mA current leakage.
Support different areas of the image color change contrast fine check
Supports comparison between good and bad boards to locate faulty circuit boards quickly
Compatible with phone/computer, thermal imager through Type-C data cable, connect your phone/computer/laptop, install thermal imager software on your phone/computer can be used
52000 points effective temperature measurement, 192×256 full frame infrared detection
3D thermal field distribution, display of temperature changes, a dedicated mode for product evaluation, and heat distribution analysis
The innovative 3D thermal field mode is more intuitive and the 2D thermal field area curve is more detailed
Double plate comparison zone temperature, curve contrast record, for thermal distribution design optimization, fault differentiation comparison verification, regional temperature curve comparison record, superposition comparison, etc
Comfortable angle up and down, more practical design, quickly adjust the direction of the lens, loosen the sliding screw of the support
It can realize up and down, go up and down, and select the appropriate detection angle, the working distance is 100-150mm, and the extended lens can be observed at 30mm

Specification:
Model: iScout
Name: Thermal Imaging Camera
Resolution: 256×192 pixels
Measurement distance: 100~150mm
Device interface: Type-C interface
Lens field of view Angle: 56°x42°
Image storage format: JPG
MP4 Video storage format: MP4
Temperature range: -15℃~+600℃
Detection: Minimum current leakage of 6mA
Size: 147*147’217mm
Net Weight: 433g

Package includes:
1 x Thermal Imaging Camera
2 x Type-C Cable
1 x Macro Lens
