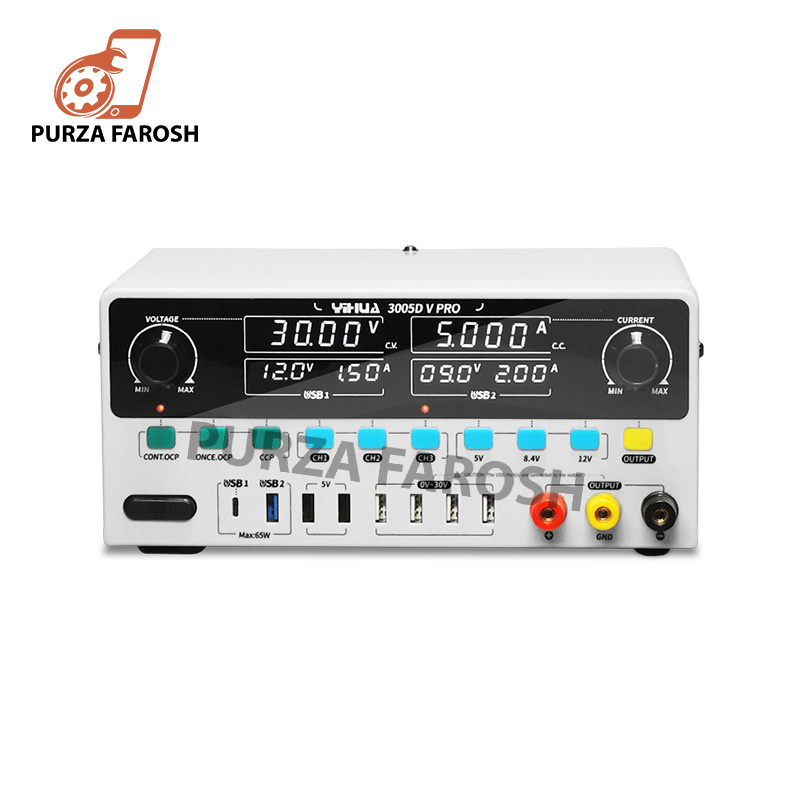

YIHUA 3005D V PRO Linear DC Power Supply Variable 30V 5A single Output Digital DC Power Supply

SPECIFICATION
1. Highly stable voltage regulation,great load capacity, low ripple.With short circuit protection, overcurrent protection and over-heat protection functions.
2.Toroidal transformer inside, minimizing losses and reduced heat generation
3.Quick-access non-adjustable voltages of SV, SAV, and 12V, as well as three pre-set channels to switch among multiple voltage settings quickly.
4.With constant current output, overcurrent auto-stop, and overcurrent auto-resumption mode. Users can choose the appropriate mode based on their applications.
5.With 65W quick charge port, 40W quick charge port and 4 USB ports in parallel with the 30V output. Connect the load to the correct rating to prevent damaging the device.
Technical data:
Rated Power:330W
Main Unit Dimensions:L195XW250XH117mm ±10mm
Operating Ambient Temperature: -10°c-40°c/14°F -104 °F
Relative Humidity: <90%
Output Voltage DC :0~30V
Output Power :150W
Accuracy (Voltage) :<0.1 %t0.03V
Accuracy (Current): <03%t3mA
Load Regulation :<0.6%+10mV
Ripple Vrms:<0.5%(10Hz-1MHz)
Output Current :0-5A
