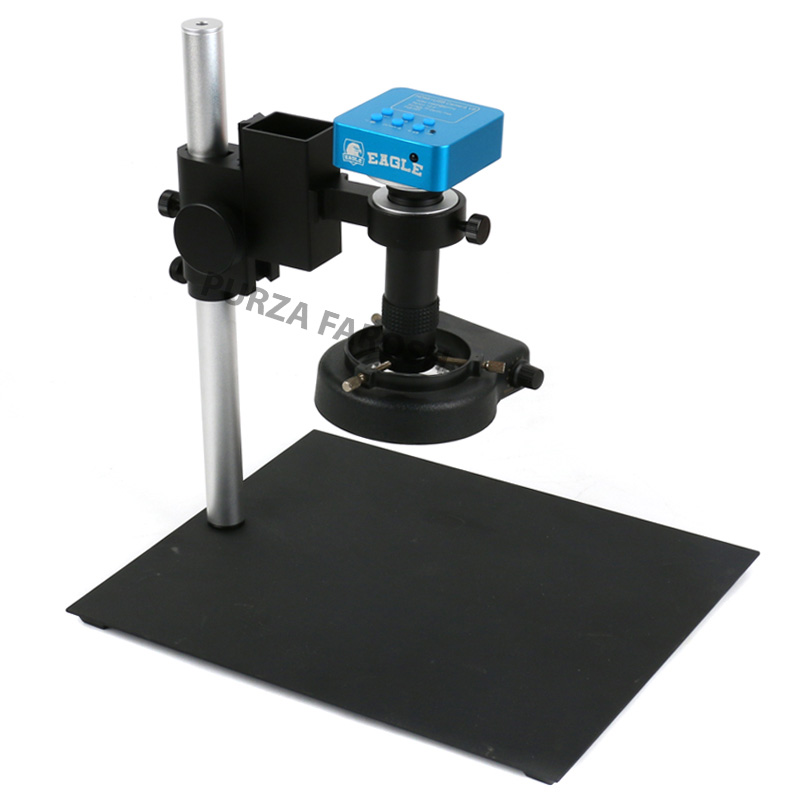

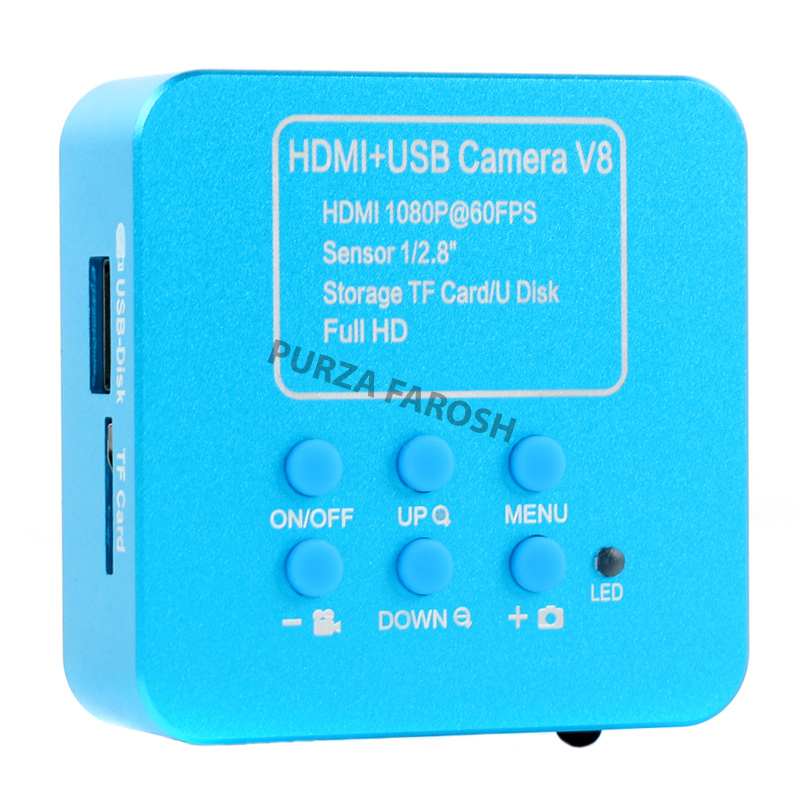

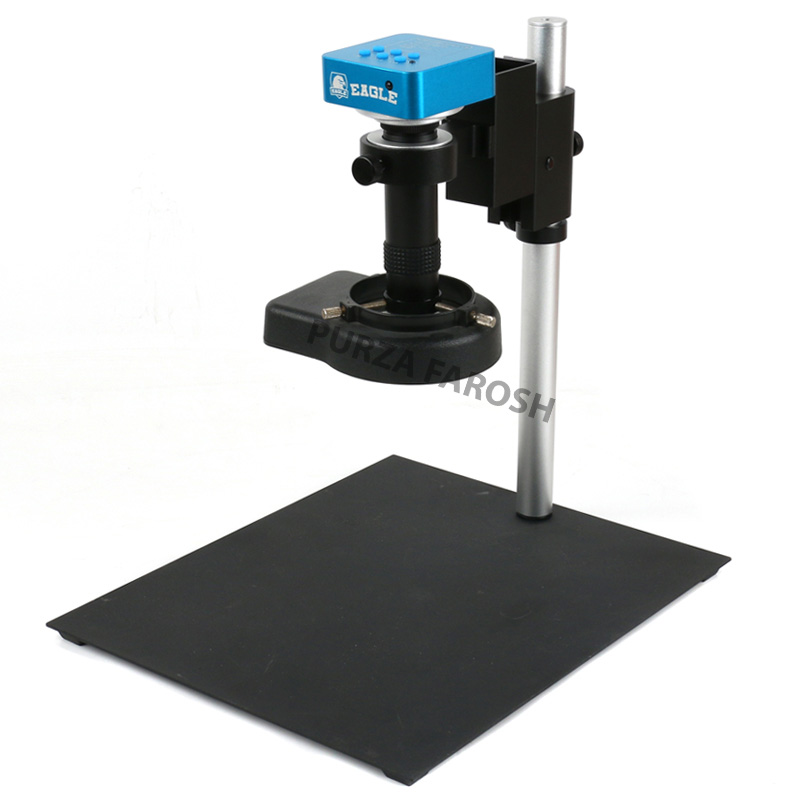

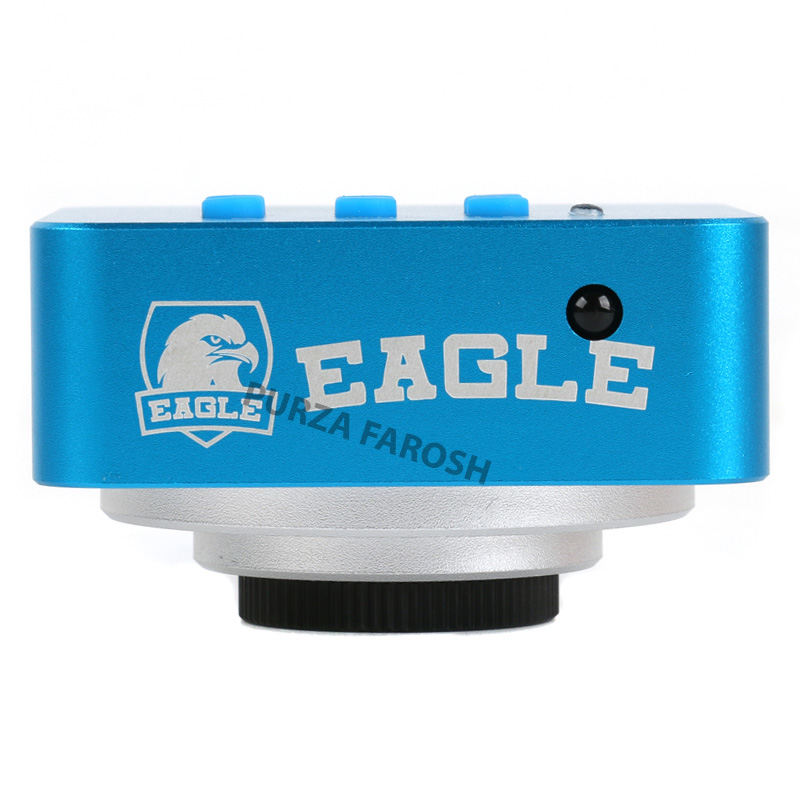

Eagle 16 Mega Pixels 4K High-Definition HDMI Industrial Camera Microscope

Function:

Adopt Imported Sony sensor;

Adopt 1/2.8 inch image sensor;

HDMI 1080P 60 frame image output;

USB driver-free output 1080P 30/Fps image output;

HDMI port 1080P video recording, 1080P Pictures were taken;

1080P photos, JPG format, photo size 1920X1080;

1-15x Electronic zoom function;

Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;

Support manual/automatic white balance/one-key white B, R, G, adjustable;

Provide 32 line functions, line color, thickness, position adjustable;

Support TF card,USB flash disk, storage, up to 128GB;

Support remote control operation, take pictures without shaking and the image will be clearer;

Support Chinese English menu languages;

Aluminum alloy casing processed by CNC precision milling technology;

Note: HDMI port output uses HDMI monitor,USB port uses PC, PC needs to install software, VGA port output uses VGA monitor, TF card interface, the function is to store pictures and videos, U disk interface, the function is to store pictures and videos!

Feature:

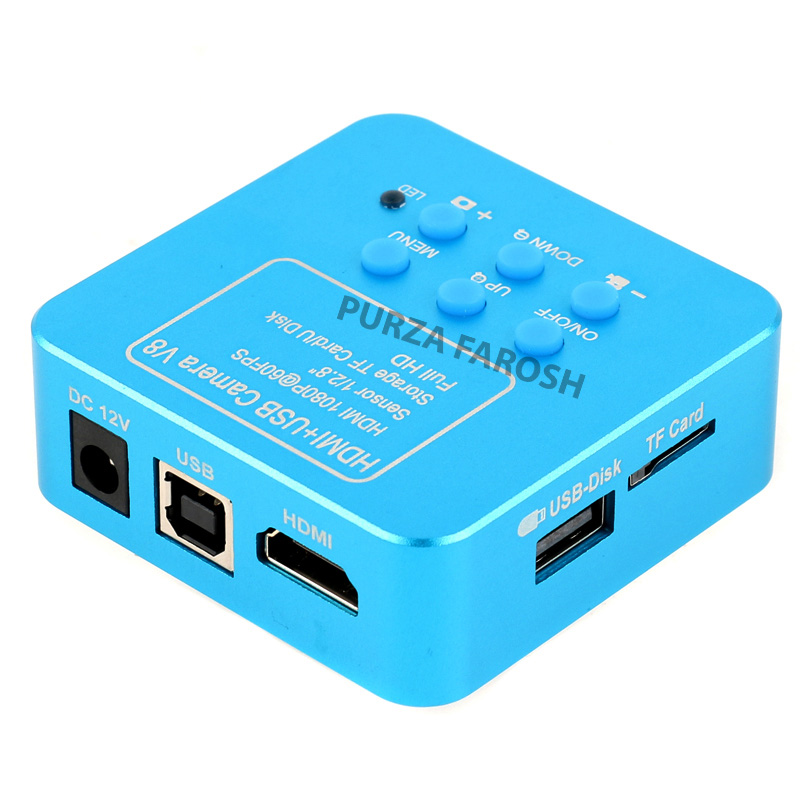

Output Interface: HDMI USB two output

Sensor: Sony 1/2.8 Inch CMOS Sensor

Housing: Aluminum Alloy

Pixel Size: 2.8um*2.8um

Video Display: HDMI Monitor or PC

Image Resolution: 1080P

Video Record Resolution: 2K@30FPS1080p@60FPS(Use TF card)

USB2.0(Drivefree) Record Resolution: 1920*1080@30FPS1280*720@30FPS640*480@30FPS

HDMI Video Resolution: 1920  1080@ 60F/S

HDMI Scale: Support 4:3,16:9,Screen

Image and Video Storage: Support

Image and Video Playback: Support

Exposure:  Automatic Exposure

Eliminate Reflections: 1-9,Adjustable

Noise Reduction: 1-10,Adjustable

TF Card Flash Drive: MAX 128GB

Digital Zoom: 1-15X

Video Format: MP4

Image Format: JPG

Camera Interface Mounting Diameter: 25mm

Camera Interface Standard: C Mount

Lens Interface: 25mm C/CS mount

White balance: One key white balance,Manual balance

Color: Black and White / Color

AWB: WB Color Correction/Auto/Manual

Brightness: 0-100%,Adjustable

Contrast: 0-100%,Adjustable

Saturation: 0-100%,Adjustable

Sharpness: 0-10,Adjustable

B&W Pictures: Support

Image Freezing: Support

R.G.B Adjustment: Support

TF Card Formatting: Support

Avoid Flicker: Auto or 50Hz 60Hz

Horizontal and Vertical Mirroring: Support

Cross Lines: 32 lines. Can set color& width& position

Remote: Infrared Remote Control

Support Languages: Chinese,English

Power: DC 12V/1A

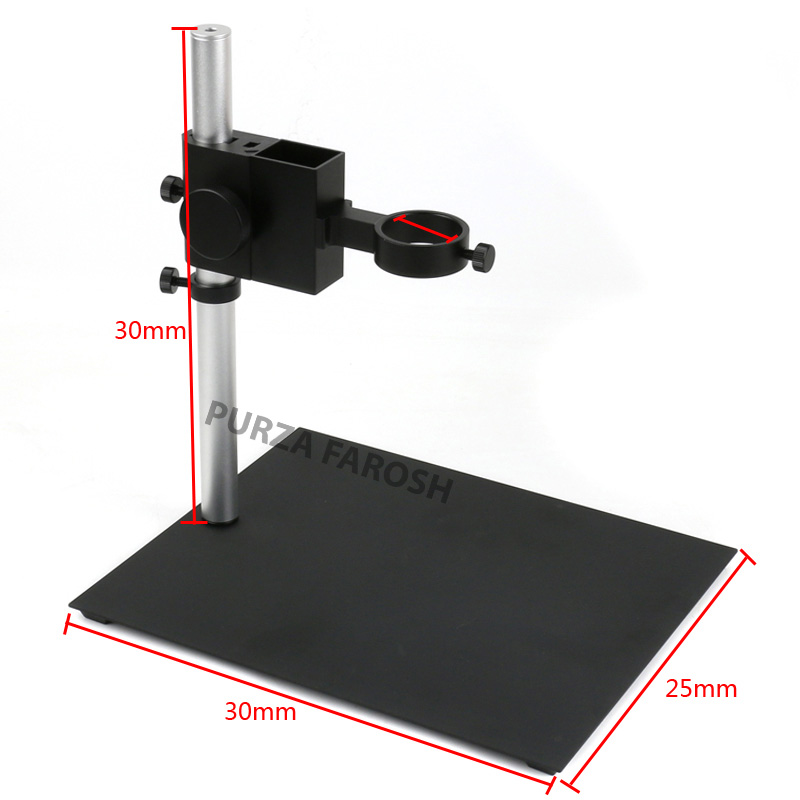

Stand Features:

Type: Microscope Stand

Material: Aluminum Alloy

Color: Silver+Black

Installation Method: Table Desktop Worktable

Focusing Working Diameter: 22mm

Focusing Installation Diameter: 40mm

Focusing Function: Up and down adjustment,Rotation adjustment

Lens Fixing Method: Screw

Column Diameter: DIA 22mm

Fixing Ring: 22mm

Fixed Type: Screw

Stand Size: 300mm x 250mm x 30mm

Applications: Monocular Video Microscope Camera

Suitable Lens: Working Diameter 40mm C CS Mount Lens

Support Base: 230mm x 150mm

Apply Camera: Video Stereo Microscope Camera

Package includes:

1 x Microscope Camera

1 x 12V/1A Power supply(EU/ AU Adapter)

1 x USB Cable

1 x HDMI Cable

1 x IR Remote Control

1 x Road

1 x Base

1 x 22mm Fixing Ring

1 x 50mm / 40mm Focusing Bracket
